Product     GPS unit Eurowag Vektoronics 820 with CAN bus connection (CAN Sniffer)

Usage    Transmission of the machinery location to CleverFarm platform, connection to CANBUS, reading the
identification of the tools

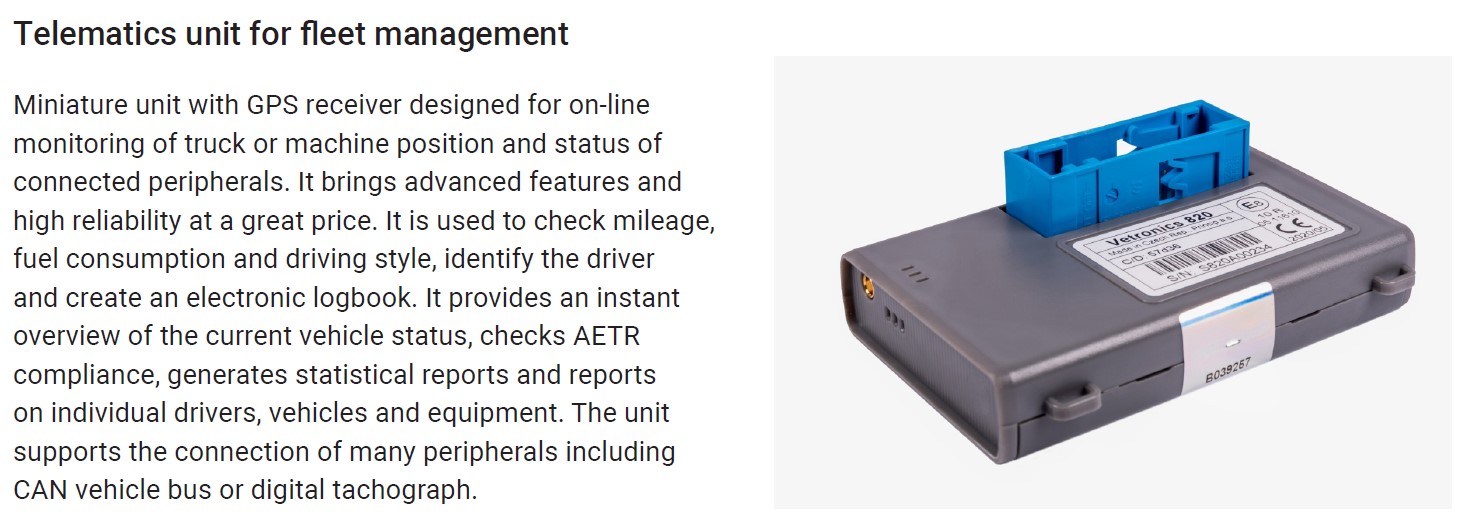

Miniature unit with GPS receiver designed for on-line monitoring of truck or machine position and status of connected peripherals. It brings advanced features and high reliability at a great price. It is used to check mileage, fuel consumption and driving style, identify the driver and create an electronic logbook. It provides an instant overview of the current vehicle status, checks AETR compliance, generates statistical reports and reports on individual drivers, vehicles and equipment.

The unit supports the connection of many peripherals including CAN vehicle bus or digital tachograph.

Technical data unit

•    Input voltage 6 - 42V
•    Sleep mode consumption < 0,5 mA
•    Backup battery version NiMH/Pb/LiPol
•    Memory 4 MB, 200 000 records
•    Temperature range -40°C až +85°C
•    Dimension 90 x 56 x 17 mm
•    Certificates e8, CE

Technical data GPS

•    Code receiver 90 channels
•    Support EGNOS, WAAS, GLONAS, GALILEO
•    Capture to 35s (cold start)
•    Capture at min. -148dBm
•    Navigation at min. -165dBm
•    Accuracy 3,0m 2DRMS
•    System support almanach plus

Technical data Inputs and outputs

•    8 x analogue input
•    2 x digital activation input
•    4 x digital output
•    1 x Dallas 1wire, or Wiegand
•    1 x tach output or LIN
•    3 x indicator LEDs
•    2 x RS 232 C line + 1x UART 3V
•    2 x CAN, FMS, or OBD II
