DETALII TEHNICE
Valori determinate : Temperatura, Umiditate, Precipitatii,Frunza electronica martor, Presiune atmosferica
Utilizare
Monitorizarea temperaturii si umiditatii aerului in cultura
Monitorizarea precipitatiilor atmosferice pentru optimizarea irigatiilor
Masuratori prin intermediul frunzei electronice martor
Monitorizare pe termen lung a evolutiei vremii, cu stocarea datelor pe durata a catorva ani
Anticipare a atacurilor de boli si daunatori, la nivel de cultura, bazate pe modele matematice
Specificatii tehnice
• Protectie IP65
• Alimentare baterii cu Litiu 3.6V 14500/2600 mAh
• Consum <3.5uA in modul standby, 80mA in modul transmitere date
• Durata de viata a bateriei: 12.000 de transmisii de date (aproximativ 3 ani)
• Standard IoT: SigFox, LoRaWan, NB-IoT
• Dimensiuni: 300 x 65 x 33 mm
• Greutate: 120 g
• Palnie colectare precipitatii: Pronamic 100.074 with accuracy +/- 5%
• Antena: Helical, 2dBi
• Distanta emitere radio: aprox 45 km in conditii de camp deschis
Parameters :Temperature, Humidity, Rainfall, Leaf wetness, Atmospheric pressure
Usage Weather station is used for measuring air temperature, relative air humidity, atmospheric pressure, precipitation volume and leaf wetness. With its features, weather station is perfect fit for application in agriculture field and thanks to the compact construction it is possible to use in the application of meteorological forecasting models with dense coverage in given area. Expected battery lifetime is up to 3 years. Data are stored in the application for several years back.

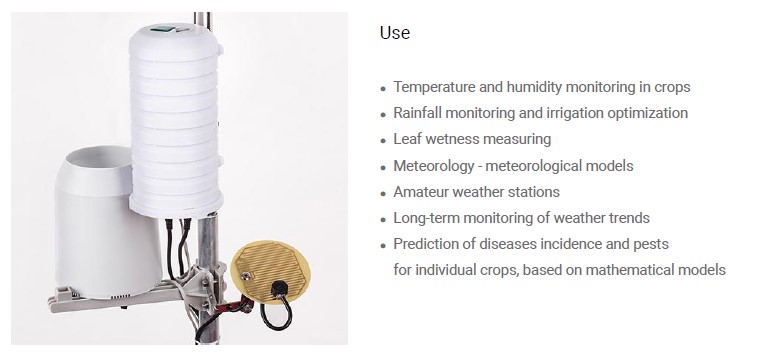

Use:
● Temperature and humidity monitoring in crops
● Rainfall monitoring and irrigation optimization
● Leaf wetness measuring
● Meteorology - meteorological models
● Amateur weather stations
● Long-term monitoring of weather trends
● Prediction of diseases incidence and pests for individual crops, based on mathematical models
Technical data
• Degree of protection: IP65
• Power: 3.6V Lithium battery 14500/2600mAh, 2 batteries slot
• Consumption: < 3,5uA in stand by mode / 80mA broadcasting
• Battery lifetime: Approx 12 000 broadcasting
• IoT standards: SigFox, LoRaWan, NB-IoT
• Frequency zone: SigFox (868 Mhz), LoRaWan (863-870 MHz), NB-IoT (800 MHz)
• Dimensions: 300 x 65 x 33 – radio unit, case included
• Weight: 120g
• Temperature/humidity/pressure: Bosh BME 280, přesnost +- 3% / Sensirion SHT 31
• Rain gauge: Pronamic 100.074 with accuracy +/- 5%
• Leaf wetness: Own model
• Antenna: Helical, 2dBi or external 2 to 3dBi
• Range of radio communication: Approx. 45km outdoor
