Valori determinate: Temperatura solului, Umiditatea solului
Utilizare Optimizarea irigarii
Monitorizarea pe termen lung a umiditatii din sol
Previzionarea momentului de semanat
Previzionarea momentul optim de recoltare
Anticiparea momentului de atac al bolilor si daunatorilor, la nivelul fiecarei culturi, bazata pe modele matematice
Specificatii tehnice
• Protectie IP68
• Alimentare baterii cu Litiu 3.6V 14500/2600 mAh
• Consum <3.5uA in modul standby, 80mA in modul transmitere date
• Durata de viata a bateriei: 12.000 de transmisii de date
• Standard IoT: SigFox, LoRaWan, NB-IoT
• Dimensiuni: 107 x 65 x 33 mm
• Greutate: 120 g
• Distanta emitere radio: aprox 45 km in conditii de camp deschis
Parameters:Temperature, Soil moisture

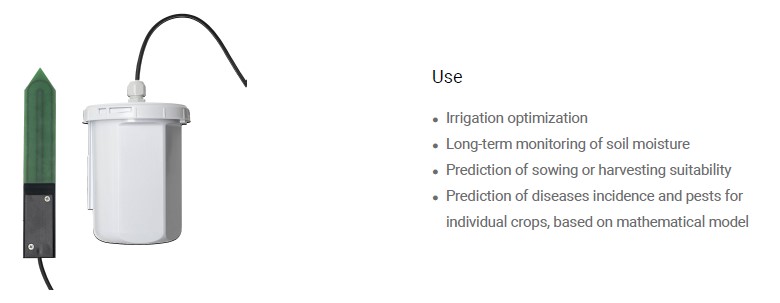

Usage Soil sensor is a device designed to measure soil moisture and temperature at a depth given by inserting the sensor into soil. A Treubner sensor based on volumetric water volume measurement was used to determine soil moisture.
Use
● Irrigation optimization
● Long-term monitoring of soil moisture
● Prediction of sowing or harvesting suitability
● Prediction of diseases incidence and pests for individual crops, based on mathematical model
Technical data
• Degree of protection: IP68
• Power: 3.6V Lithium battery 14500/2600mAh, 2 batteries possible to instal
• Consumption: <3,5uA in stand by mode/80mA broadcasting
• Battery lifetime: cca 12 000 broadcasting (1 hour interval)
• IoT standards: SigFox, LoRaWan, NB-IoT
• Frequency zone: SigFox(868 Mhz), LoRaWan(863-870 MHz), NB-IoT(800 MHz)
• Dimensions: 107 x 65 x 33 – radio unit, case included
• Weight: 120g
• Temperature/humidity: Treubner
• Antenna: Helical, 2dBi or external 2 to 3dBi
• Range of radio communication: Approx. 45km outdoor
