Valori determinate : Temperatura solului, Cantitatea de apa din sol
Utilizare
Optimizarea irigarii
Monitorizarea pe termen lung a umiditatii din sol
Previzionarea momentului de semanat
Previzionarea momentul optim de recoltare
Anticiparea momentului de atac al bolilor si daunatorilor, la nivelul fiecarei culturi, bazata pe modele matematice
Specificatii tehnice
• Protectie IP68
• Alimentare baterii cu Litiu 3.6V 14500/2600 mAh
• Consum <3.5uA in modul standby, 80mA in modul transmitere date
• Durata de viata a bateriei: 12.000 de transmisii de date
• Standard IoT: SigFox, LoRaWan, NB-IoT
• Dimensiuni: 107 x 65 x 33 mm
• Greutate: 120 g
• Antena: Helical, 2dBi
• Distanta emitere radio: aprox 45 km in conditii de camp deschis
Parameters : Temperature, Soil water potential

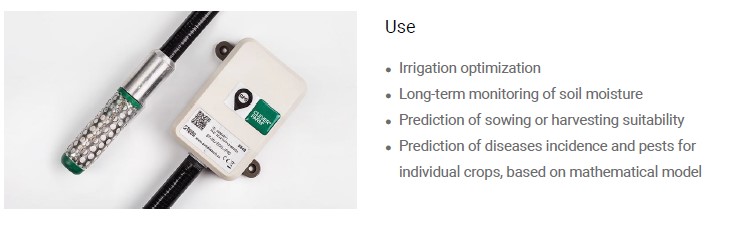

Usage Soil sensor is a device designed to measure soil moisture and temperature at a depth given by inserting the sensor into soil. Method of measurement based on moisture absorption eliminates several side-effects that could distort measured values. In particular, it is resistant to various soil salinities, its microbiological content, etc. The thermometer is an integral part of the measuring probe and the sensor is made of a very durable material to withstand unfavorable outdoor conditions. Senzor is also available in a wire version.
Use
● Irrigation optimization
● Long-term monitoring of soil moisture
● Prediction of sowing or harvesting suitability
● Prediction of diseases incidence and pests for individual crops, based on mathematical model
Technical data • Degree of protection: IP68
• Power: 3.6V Lithium battery 14500/2600mAh, 2 batteries slot
• Consumption: < 3,5uA in stand by mode / 80mA broadcasting
• Battery lifetime: cca 12 000 broadcasting (1 hour interval)
• IoT standards: SigFox, LoRaWan, NB-IoT
• Frequency zone: SigFox(868 Mhz), LoRaWan(863-870 MHz), NB-IoT(800 MHz)
• Dimensions: 107 x 65 x 33 – radio unit, case included
• Weight: 120g
• Temperature/humidity: Watermark
• Antenna: Helical, 2dBi or external 2 to 3dBi
• Range of radio communication: Approx. 45km outdoor
