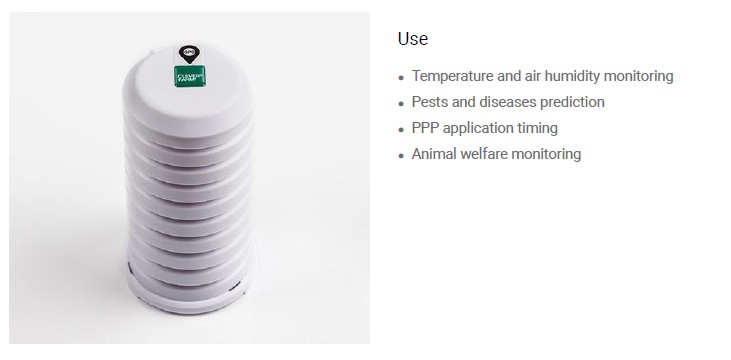

Technical data – sensor basic
Values
Temperature, Humidity
Usage
Sensor measures temperature and air humidity and can also monitor microclimatic conditions of your crops. These measured values can be used to predict an occurrence of pests and diseases on your sugar beets, cereals, corn and permanent crops. Monitoring of conditions in the crops can also be used to plan application of PPP, in order to comply with the conditions of their effectiveness (min. temperature). This sensor can also monitor the temperature and humidity inside your stables and coops. This data can be used to control your air conditioning and heating.
Use:
Temperature and air humidity monitoring
Pests and diseases prediction
PPP application timing
Animal welfare monitoring
Technical data
- Degree of protection: IP65
- Power: 6V Lithium battery 14500/2600mAh, 2 batteries slot
- Consumption: < 3,5uA in stand by mode / 80mA broadcasting
- Battery lifetime: Approx 12 000 broadcasting
- IoT standards: SigFox, LoRaWan, NB-IoT
- Frequency zone: SigFox (868 Mhz), LoRaWan (863-870 MHz), NB-IoT (800 MHz)
- Dimensions: 300 x 65 x 33 – radio unit, case included
- Temperature/humidity/pressure: Bosh BME 280, přesnost +- 3% / Sensirion SHT 31
- Weight: 120g
- Temperature / humidity: Bosh BME 280, accuracy +- 3%
- Antenna: Helical, 2dBi or external 2 to 3dBi
Range of radio communication: Approx. 45km outdoor
