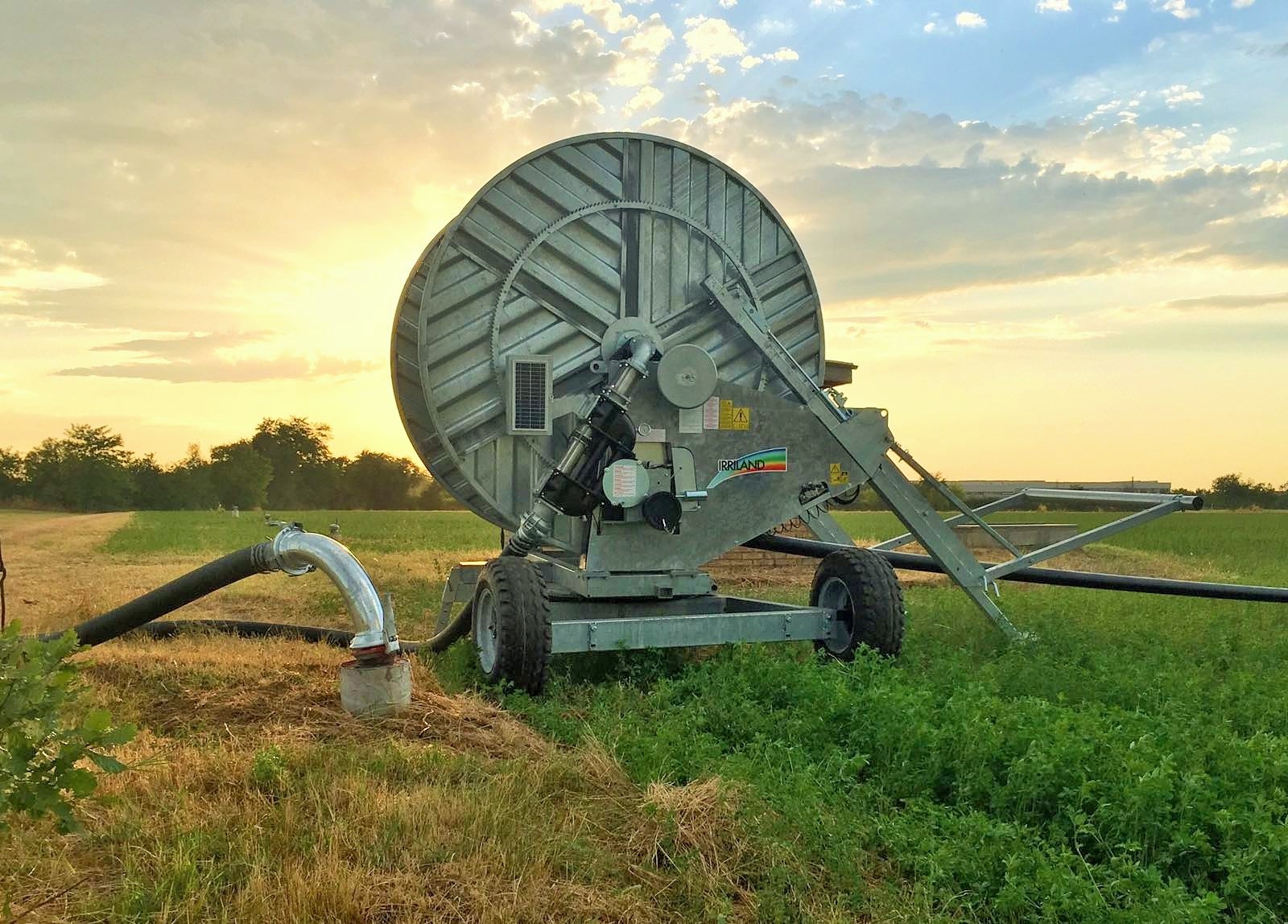

Technical details

Chassis Structure 23L
The structure and roller/roller are COMPLETELY hot galvanized
360 degree rotating structure
Towing hook height adjustment
Chassis with height adjustment and two front legs
Transmission Driven by a water-partitioned turbine
Cast iron turbine applied to the gearbox
Oil bath gearbox with PTO cardan
Protective flywheel for the power take-off with irreversible reducer
Speed corrector on independent by-pass
Speed adjustment on independent by-pass
Sprinkler Cannon/sprinkler with nozzles in series, Reflex F (nozzles 22-24-26-28-30)
Brakes Automatic braking
Miscellaneous Electronic withdrawal speed indicator
Manometer
4 meters of flexible hose with couplers
Automatic stop at the end of hose tightening
Hose guide system when tightening without locking screw
Cart Cart for cannon adjustable in height and width
Automatic lifting of the trolley

Weight Kg empty: 2700
Kg with water: 4867

size
A Maximum overall length 2,550 mm
B Height with wheels 3040 mm

ADDITIONAL EQUIPMENT
- hydraulic brake on the gearbox
- 2" diameter electric blocking butterfly valve
- rear HYDRAULIC stabilizer legs operated by manual pump
- Controller type I: the possibility of setting the tightening speed, battery with 3 LEDs, tightening speed and possible defects.
- CE certification and marking
