Technical details

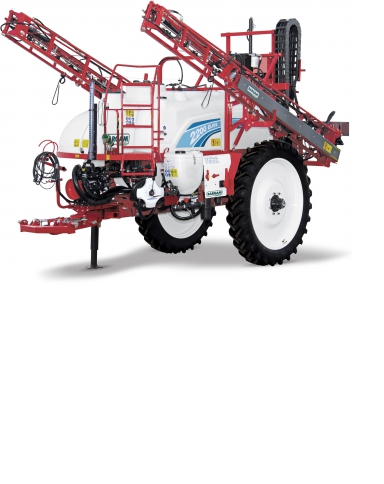

Type of machine Towed for herbicide model ELIOS 3.200 with 24m BDL type spraying ramp with hydraulic lifting and folding
Main tank Made of polyethylene, with breakwaters, volume 3,300 l, access to bunker with ladder and platform, internal washing kit of bunker with non-return valve and hand washing kit; Dry type graduated level indicator,
Steel chassis, protected against oxidation by painting
Wheels With tires according to Additional Equipment
Gauge 1,400 – 2,100 mm; Variable 1,400-1,800mm, from 1,800 to 2,100mm by reversing wheel centers
Spraying ramp 24m, lifting stroke according to Additional Equipment; Hydraulic folding ramp; Self-leveling system with locking mechanism; Ramp stabilization system according to Additional Equipment; Spring protection kit for the ramp ends.
Nozzles & nozzle supports Compact Jet nozzle supports 4 ways. Air Induction nozzles "T-AIXR" 110 04
Mixing bowl Volume 35 l, spring-assisted mobile support
Monitoring Electric control unit for the ramp with 7 sections + Additional equipment
Water distribution 280 l/min pump, 20 bar; Filter on absorption; Cardan action
Filling with water From the hydrant or with the car pump equipped with compact valves with quick coupling to a filling hose according to additional equipment
Agitation of the solution Agitation system by returning the water to the tank
Mass About 2,150 kg
Tractor requirements Min 70 HP, 540 rpm, 2 hydraulic valves, YES; electrical outlet with 7 pins; CE electrical outlet

Additional equipment

3-way faucet: right - left - inclined (BDL 12/21 m); first arm together; second arm full; tilt adjustment (BDL 24 m) (necessary tractor - a valve with DA);
Fixed protap with adjustable height with towing eye Ø 35 mm;
Wheels 270/95 R44 (11.2 R44) instead of 230/95 R36 (9.5 R36), rims with 8 holes;
Cardan 21 HP, 1,300 mm long;
Rotating support for the hose port for filling the pool;
Pool filling hose, Ø 50 x 8 m, with "High Performance" floating filter;
Parallelogram ramp lifting mechanism; stroke 1,500mm hydraulically adjustable;
Shock absorber, pneumatic, for ramp suspension;
Signs and signaling lights;
Discontinuous water circulation kit;
Ramp stabilizer, recommended for working speeds higher than 10 km/h;
Preparing to connect to the computer (water function control), flow meter, pressure sensor
