Technical details

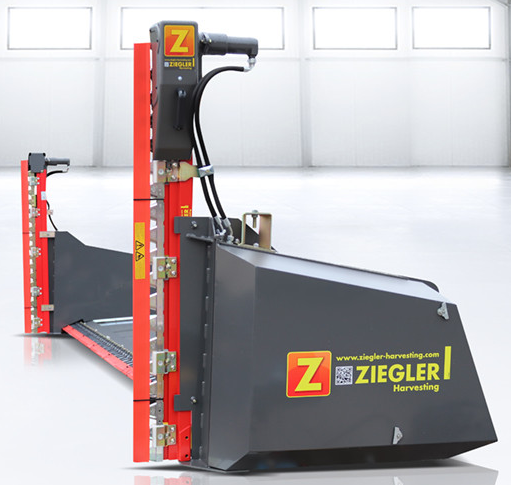

Equipment type RTZ-AGCO Rapztizch 600-699 cm
Fixed frame, with front extension for 6.0 m FF - WWHU header
Fast header coupling, with 4 tensioners with threaded rods;
Actuation With trapezoidal belt, in series with the transmission to the blade of the straw header of 6.0 m FF;
Schumacher cutting unit, knife holder bar with double fingers and alternating blades, operated from an integrated hydraulic circuit, composed of pump, hydraulic motor and oil tank
Chain separators According to Additional equipment
Weight About 500 kg

Additional equipment

Right vertical knife of 1.35 m hydraulically actuated from the integrated hydraulic circuit
